EASY FIT TETHERED SMART EV CHARGER:

Features & Benefits:

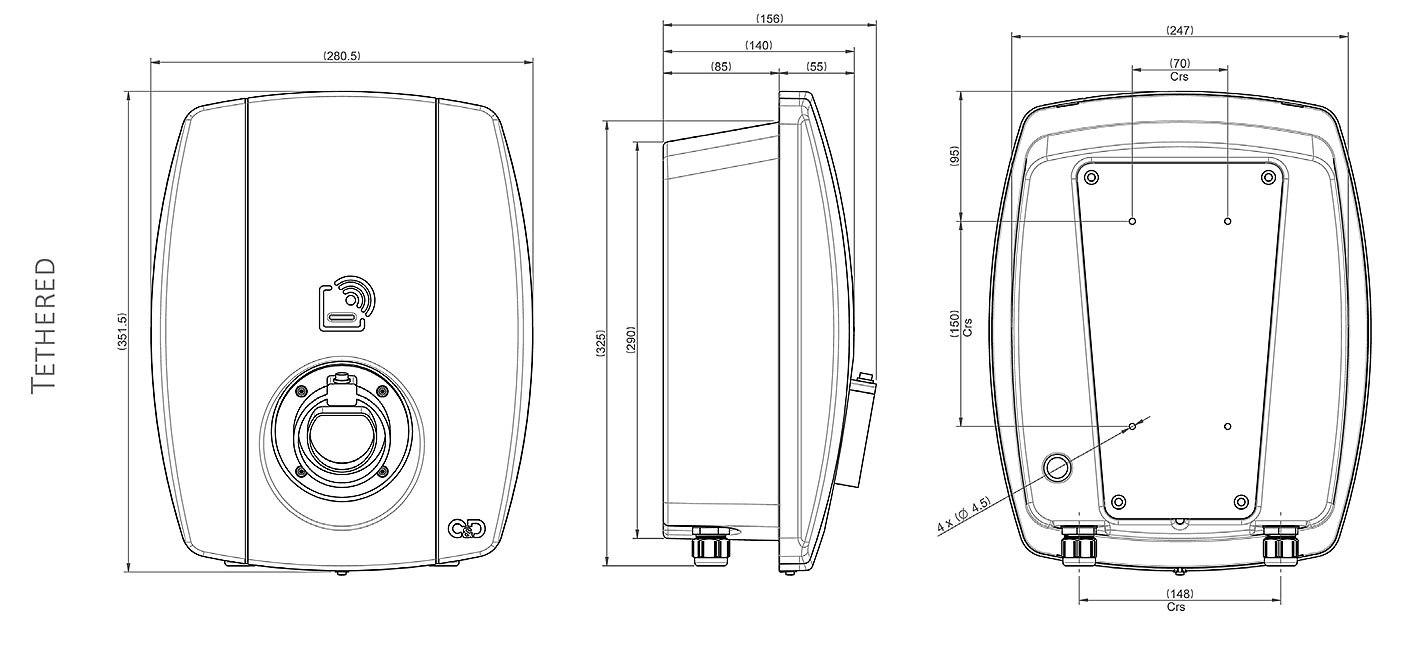

Tethered Smart EV Charger Dimensions
Click to Enlarge
The tethered 32A (7.4 kW) single phase smart EV charger is an easy to fit solution for residential and business locations, complete with built in overload, ground fault and surge protection. Each smart charger comes with a wifi enabled hub, allowing easy connectivity between the charger and the phone app. Each charger is supplied with a RFID fob, allowing vehicle charging authorisation when swiped against the unit.

Compliant to EN61851 - 1 & 22 | EN62196 | EN62955 | LV directive 2014/35/EU | EMC Directive 2014/30/EU | RoHS Directive 2011/65/EU

  • Type 2 holster, car plug and 5 metre cable
  • Wifi enabled smart gateway hub
  • PEN fault & 6mA DC leakage protection
  • LED status indication
  • Independent wall mounting bracket
  • 2x M205 plastic cable glands

Smart App Features:

  • Tethered or socketed (untethered) options
  • 7.4kW Mode 3 fast charging
  • UK type 2 charger connection
  • Gateway Hub complete with RJ45 cable and USB C power cable and plug
  • OCPP 1.6J compatibility
  • Smart App offers a driver dashboard displaying historic usage and sessions and the user has the capability to customise scheduling
  • Integrated RFID reader for immediate charge operation
  • Built-in PEN fault protection - no earth rod required
  • 6mA DC Integrated protection for DC leakage
  • 4 x Configurable ratings 13A, 16A, 24A, 32A
  • Single phase - 230V 50/60 Hz charging only
  • Maximum incoming cable 10mm2
  • IP55 ingress protection
  • Easy fit mains & tethered cables using screwless toggle clamp terminals
  • LED EV charger status indication
  • 3 year warranty

Smart Gateway Hub:

  • The 2.4GHz local area network with a gateway hub allows an added layer of security, as it doesn’t allow any direct connection to the WIFI network.
  • The hub will allow multiple charge points to connect to the gateway while only utilizing 1 connection on the WIFI network.
  • Having the charge points connected to the gateway means that if you change internet service provider, you don’t have to completely recommission the system.
  • Future upgradability (such as WIFI 6) only means a new gateway design. This means that the charge point bolted to the wall shouldn’t need to be replaced if a change in standard is implemented in the future.
  • The gateway’s boost button allows for quick control without having to use the app. It allows for instant charge to the car, overriding any scheduling set by the app.



Dimensions:

Model - Tethered EV Charger EV03221010
Height (mm) 351.5
Width (mm) 280.5
Depth (mm) 156

TO BUY THIS EV CHARGER CALL 01384 297452 or 01952 730577 LINES OPEN 8am - 8pm 7 DAYS
WHEN ORDERING SEE Info - Conditions of Sale...

FITTING:
Please call us for a competitive fitting quote to your area.

  • 3 YEARS Manufacturers Guarantee
  • No Minimum Order
  • Prices include V.A.T.

Payment:
Cash, guaranteed cheque, Bank/Building society cheque, credit and debit cards.
Accepted Payment

Want to place an order? Need more information? Call - 01384 297452 or 01952 730577.
Lines open 8am - 8pm 7 days. FAX - 01384 824719. Email - info@hwelectric.co.uk.
We will be only too pleased to help you.
